Reserve 31|DH

World Championship Winning DH Wheels

Reserve 31|DH

Modern downhill tracks are not for the faint of heart and the abuse of a day racing a DH race or laps in the park is no joke. But we’ve...

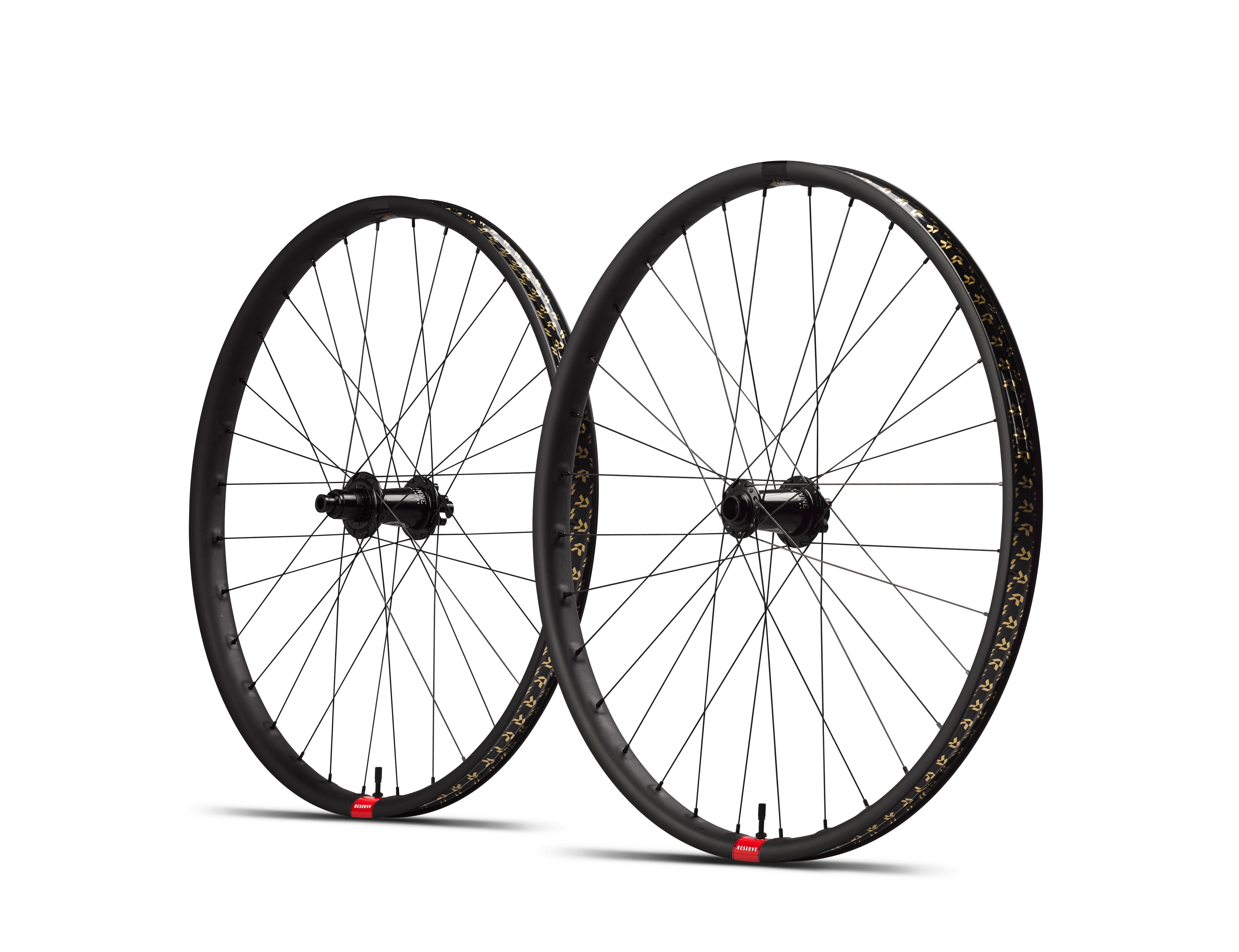

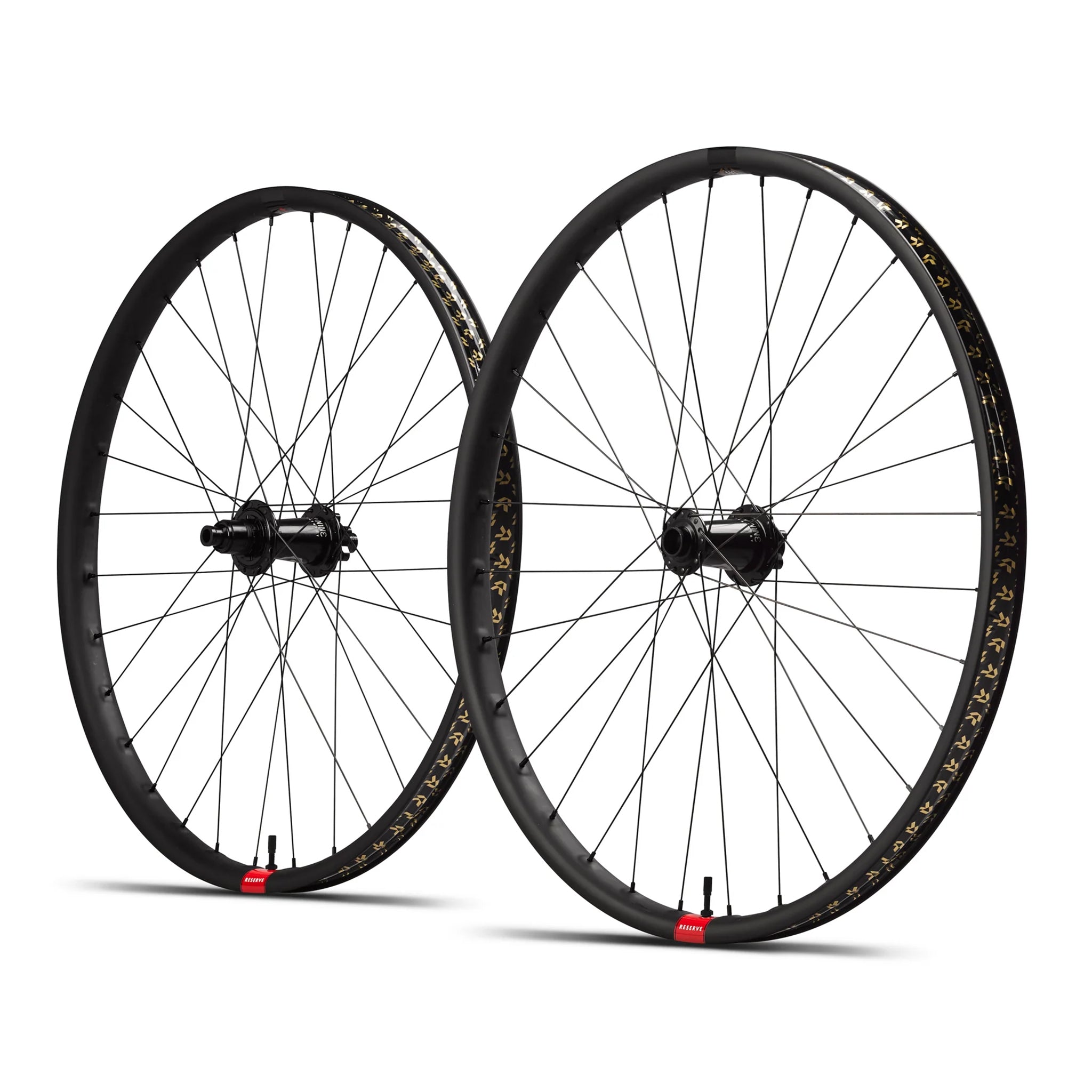

Modern downhill tracks are not for the faint of heart and the abuse of a day racing a DH race or laps in the park is no joke. But we’ve got your back with the Reserve DH wheels. Tested to victory with the Santa Cruz Syndicate on the World Cup DH circuit, it is the carbon wheelset that delivers confidence when you need it most.
+ More - Less
Wheel Size
Hub
Freehub - Rotor

Select Hubs

€2.499,00 EUR
Find a dealer Schedule a call with a Reserve Product Expert

Added To Your Cart:

Reserve 31|DH

Reserve 31|DH

Cart
Subtotal

You May Also Like...

Reserve 31|DH

Buy Now

01 Spoke Reinforcements

02 World Championship Winning

03 Asymmetrical Design

01Spoke Reinforcements02World Championship Winning03Asymmetrical Design

Spoke Reinforcements

Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.

World Championship Winning

We’ve abused the Reserve 31|DH across six continents and it is designed to be put through its paces and come out unscathed. So whether you’re sending it down a steep and chunky World Cup track or riding laps at a bike park, these wheels are simply the best out there.

Asymmetrical Design

Asymmetrical rims, like those on the 31|DH, build stiffer, stronger and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes.

Not Sure Which Wheelset is Right For You? Watch This Short Video

Details

Wheel Size

Wheelset Weight Industry 9 Hydra - 2,006g, Single Rim - 670g, 640g
ERD 594
ERD 559
ERD 594F 560R
Designed For DH Riding and Racing
Inner Width 31mm
Depth 21mm
Recommended Tire Dimensions 2.3 to 2.6
Spoke Count 32
Rim Weight 29 - 560g, 27.5 - 530g
Hub Spacing 20x110 F, 12x157 R
Freehub Options XD, HG

FAQ

What's with the raised square-shaped area around the spokes?

That's material right where you need it. With information from testing in our carbon lab in hand, we set about determining how to build the strongest rim possible, and part of the result is the square-shaped reinforcements you can see around the spoke holes.

Can you build me a wheelset if I send you my hubs? Do you sell rim-only?

We do not currently offer wheelbuilding services, but we do offer rim-only options so you can have your dream wheels built by an experienced wheelsmith.

Where can I find more tech spec information?

Click here for more tech specs information.

Looking for wheel building info?

Click here for wheel building tech sheet.

Didn't see your question?

Click here for a full list of frequently asked questions.
