Mountain

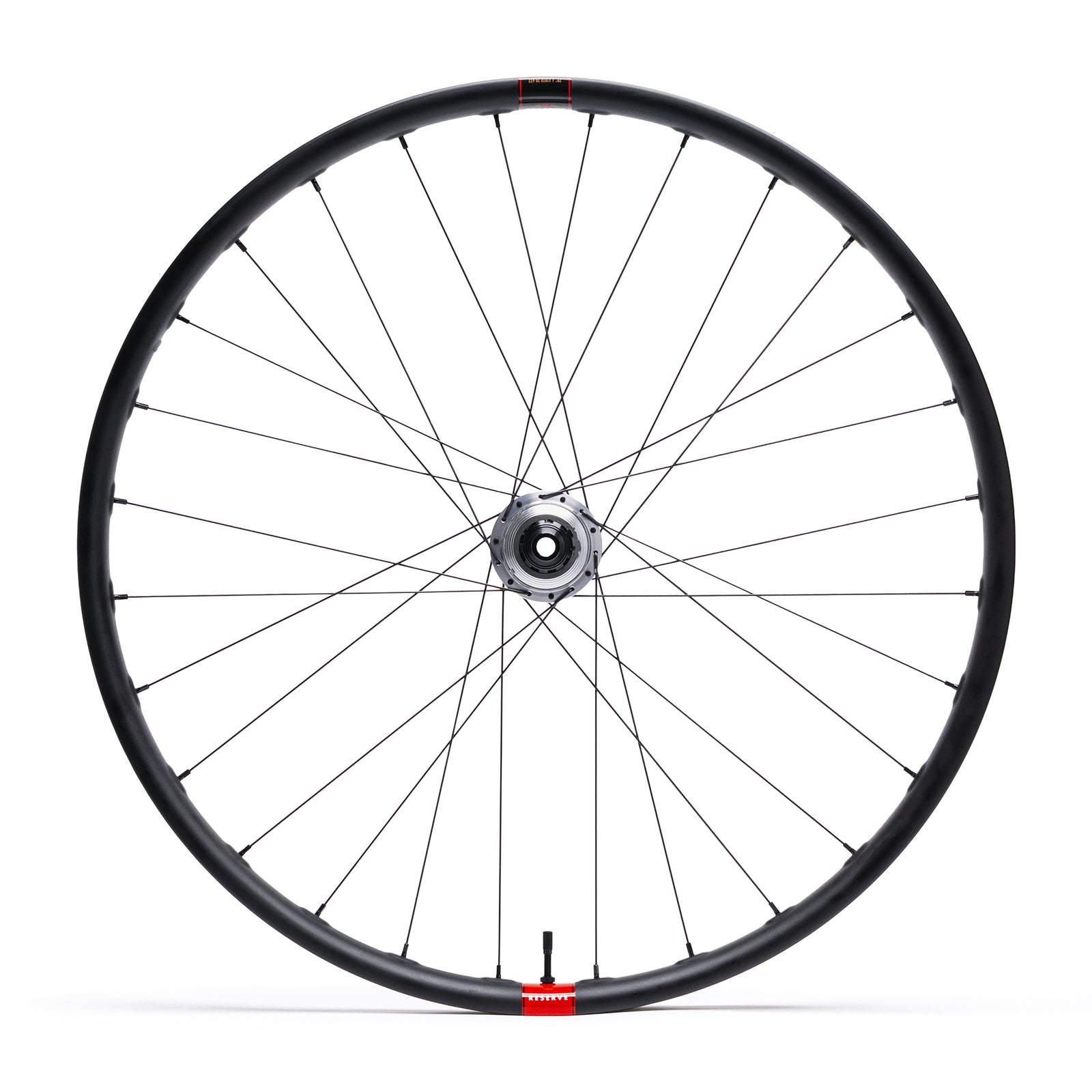

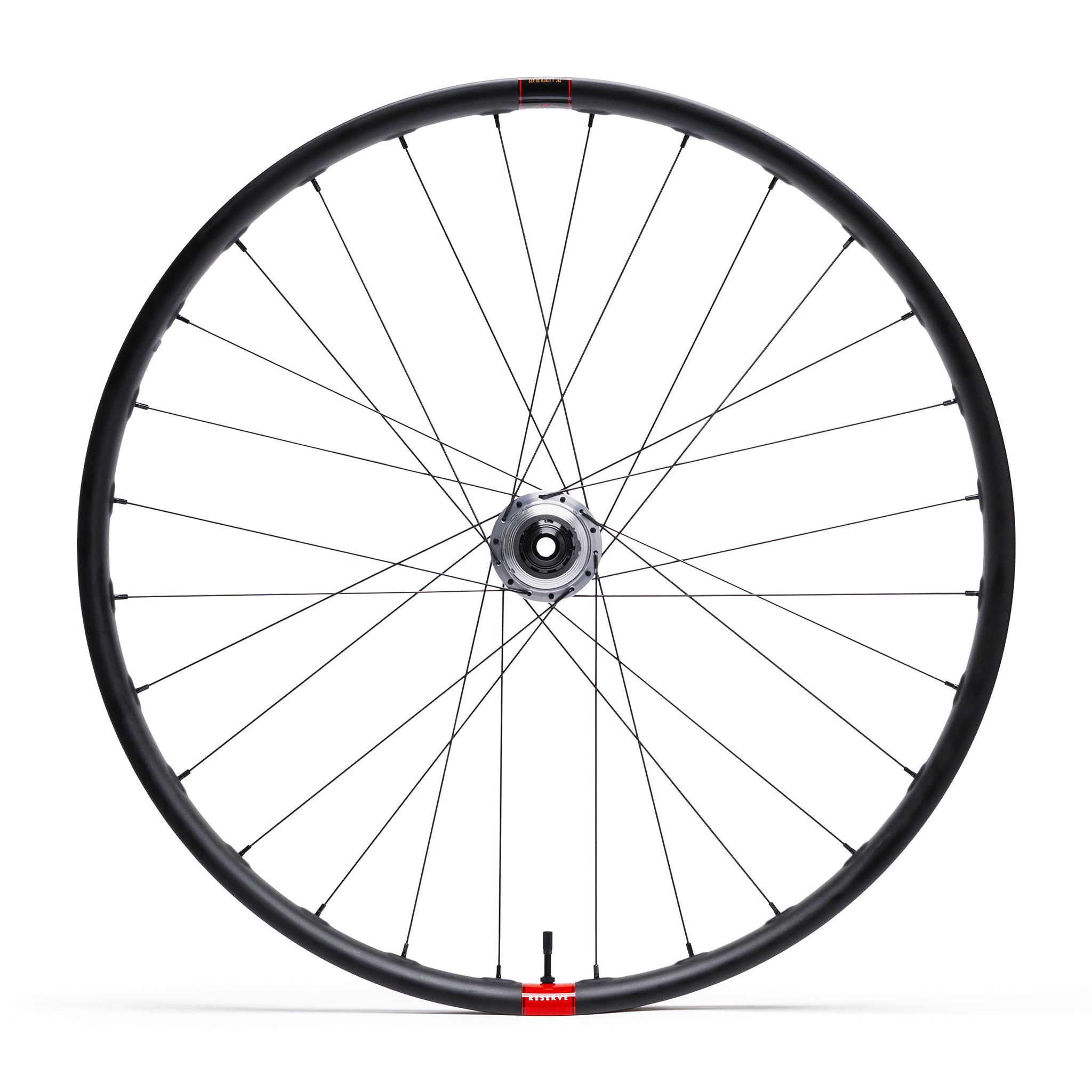

30|HD Carbon

Carbon enduro wheels built for rough descents, big hits, and abuse carbon wheels shouldn’t survive. Backed by a lifetime guarantee.
Wheel Size
Hub
Freehub - Rotor

Select Hubs

$1,799.00 USD
Schedule a call with a Reserve Product Expert

Added To Your Cart:

Cart
Subtotal

You May Also Like...

30|HD Carbon

$1,799.00 USD
Buy Now

Description

Modern trail bikes are designed to tackle anything that can be thrown at them. From cruising mellow singletrack to crushing boulder-strewn steeps, they deliver a do-everything performance that inspires the rider to go faster, more smoothly. 30|HD wheels are specially designed for trail riding and the abuse that trail bikes dish out. They feature a 30mm width for use with 2.5 tires and a redesigned inner rim bed that takes the hassle out of seating new tires.

See Full Specs

Lifetime Warranty

All Reserve wheels are built around a simple principle: we have your back. That means no rider weight limits, an industry-leading Lifetime Warranty, safe semi-hooked rim designs and comprehensive customer service.

We are riders like you and we know that breaking a wheel or damaging a Fillmore Valve can be a frustrating experience, especially when it’s keeping you from getting out on your bike. Our promise to you is that we will do our best to get you back riding as quickly as possible. It’s the reason we have made ourselves available through email, chat or by scheduling a video call. We want to be here when you need us most.

Learn more or submit a warranty claim here.

What's in the Box

  • 1x Complete wheelset
  • 34mm Reserve Rim Tape (installed)
  • 2x 50mm Fillmore Tubeless Valves (un-installed)
  • User Manual

Shipping and Returns

Free shipping on all wheels and orders over $49.99. We aim to ship orders within 24–48 hours on business days. Once shipped, your order should arrive within 3–5 business days. Orders ship with duties paid, so there are no surprise charges at delivery. New, unridden products can be returned within 60 days. Learn more on our Shipping & Returns page.

01 Asymmetrical Design

02 Lifetime Warranty

03 Redesigned Rim Bed

01Asymmetrical Design02Lifetime Warranty03Redesigned Rim Bed

Asymmetrical Design

Asymmetrical rims improve the spoke bracing angles and equalize spoke tensions between the drive and non-drive side spokes. This leads to stiffer, stronger and more reliable wheels.

Lifetime Warranty

Reserve 30|HD rims are built for a lifetime of riding and proven at Enduro races around the world. Our lifetime warranty has your back no matter how you ride. These are the wheels that keep delivering.

Redesigned Rim Bed

The 30|HD's redesigned rim bed makes tubeless installation easy and keeps your tire bead locked in. The design allows the tire to push past the bead bump, resting securely in the bed of the rim.

Details

Wheel Size

Designed For Trail, All Mountain, Enduro, E-Bike
Hub Spacing Boost: 15x110 F - 12x148 R
Spoke Count 28

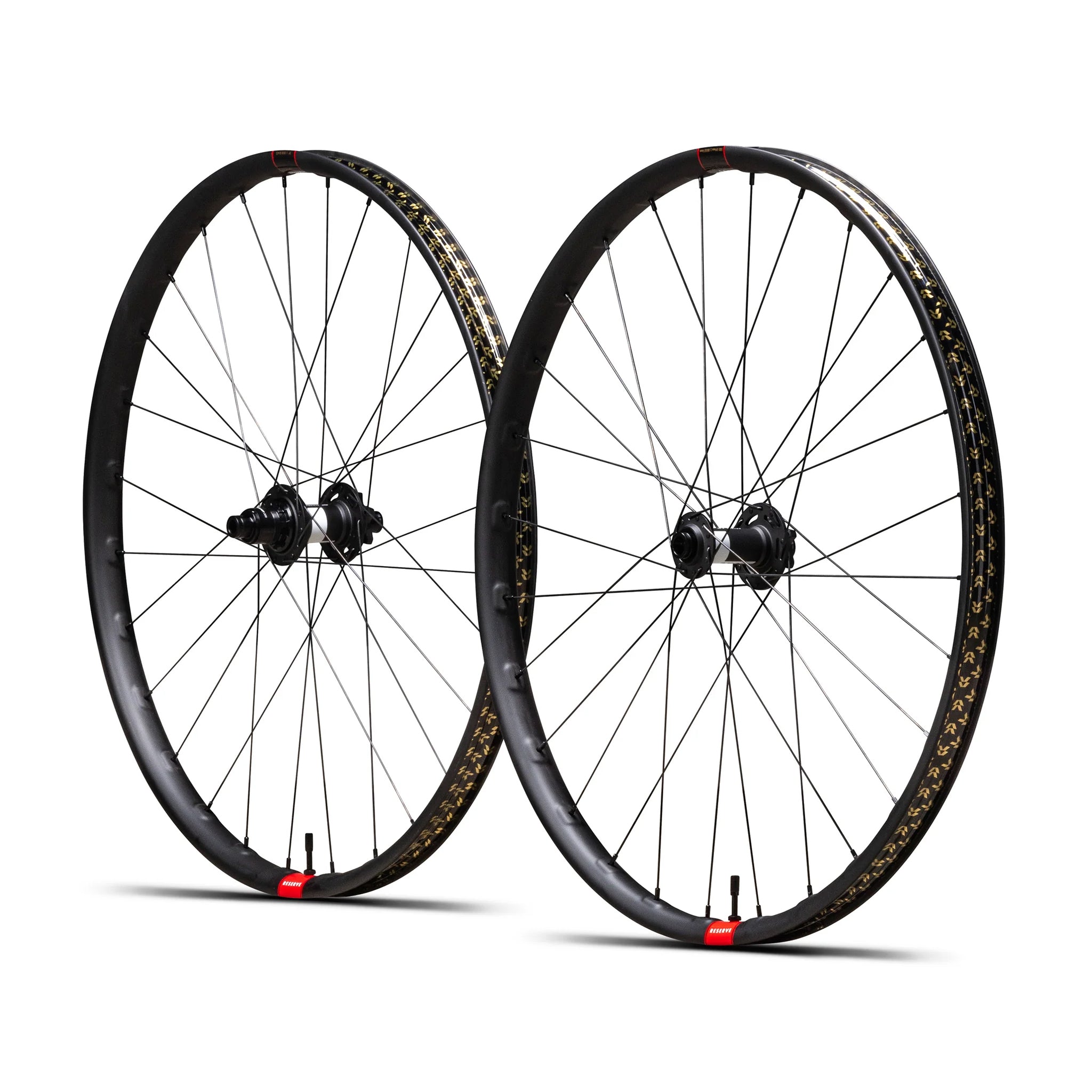

Wheelset Weight DT350 - 29" 1791g - MX 1788g

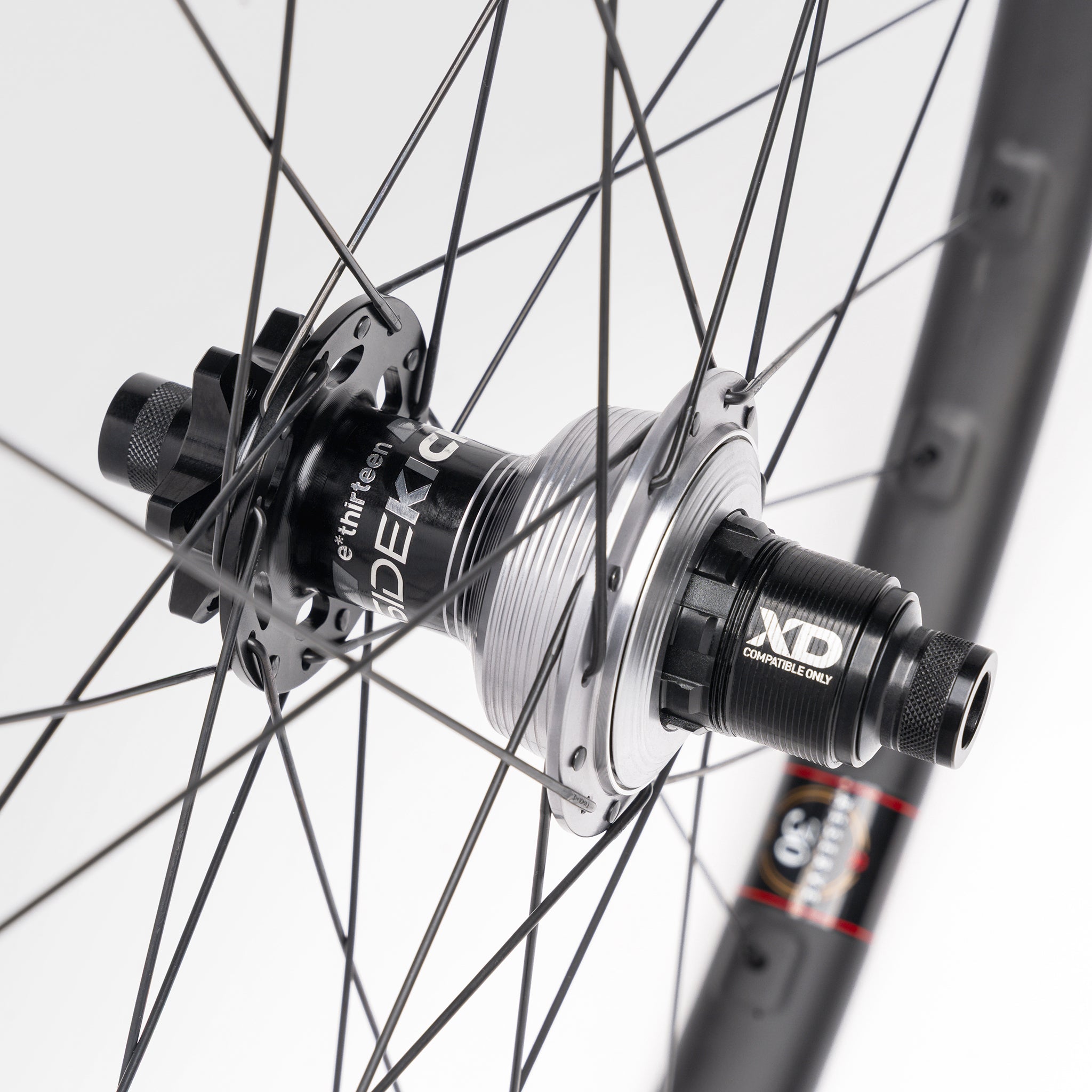

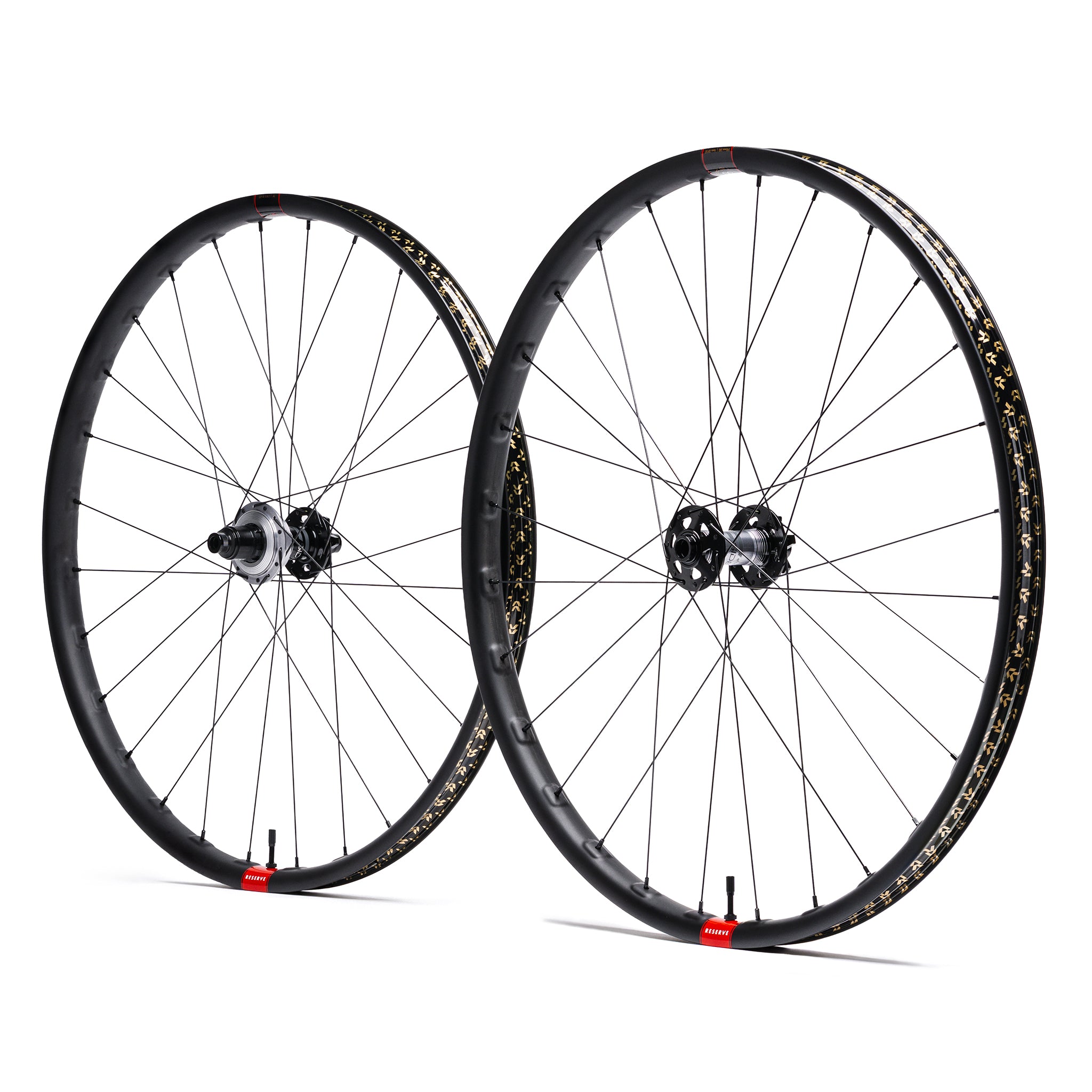

Wheelset Weight e13 Sidekick - 29" 1894g- MX 1891g
Rim Weight 29" 516g - 27.5" 497g
Inner Width 30mm
External Width 37mm
Rim Depth 20mm
Asymmetric Offset 3.6mm
ERD 29" 598mm - 27.5" 559mm
Recommended Tire Dimensions 2.2" to 2.6"
E-Bike Approved Yes

Not Sure Which Wheelset is Right For You? Watch This Short Video:

FAQ

What's with the raised square-shaped area around the spokes?

That's material right where you need it. With information from testing in our carbon lab in hand, we set about determining how to build the strongest rim possible, and part of the result is the square-shaped reinforcements you can see around the spoke holes.

Where can I find more tech spec information?

Click here for all our technical documents.

Didn't see your question?

Click here for a full list of frequently asked questions.
