Gravel

40|44 GR

Aero gravel performance for drop-bar racing, with real-world speed, stability, and profiles optimized for wider tires.
Wheel Size
Hub
Freehub

Select Hubs

$1,799.00 USD
Schedule a call with a Reserve Product Expert

Added To Your Cart:

Cart
Subtotal

You May Also Like...

40|44 GR

$1,799.00 USD
Buy Now

Description

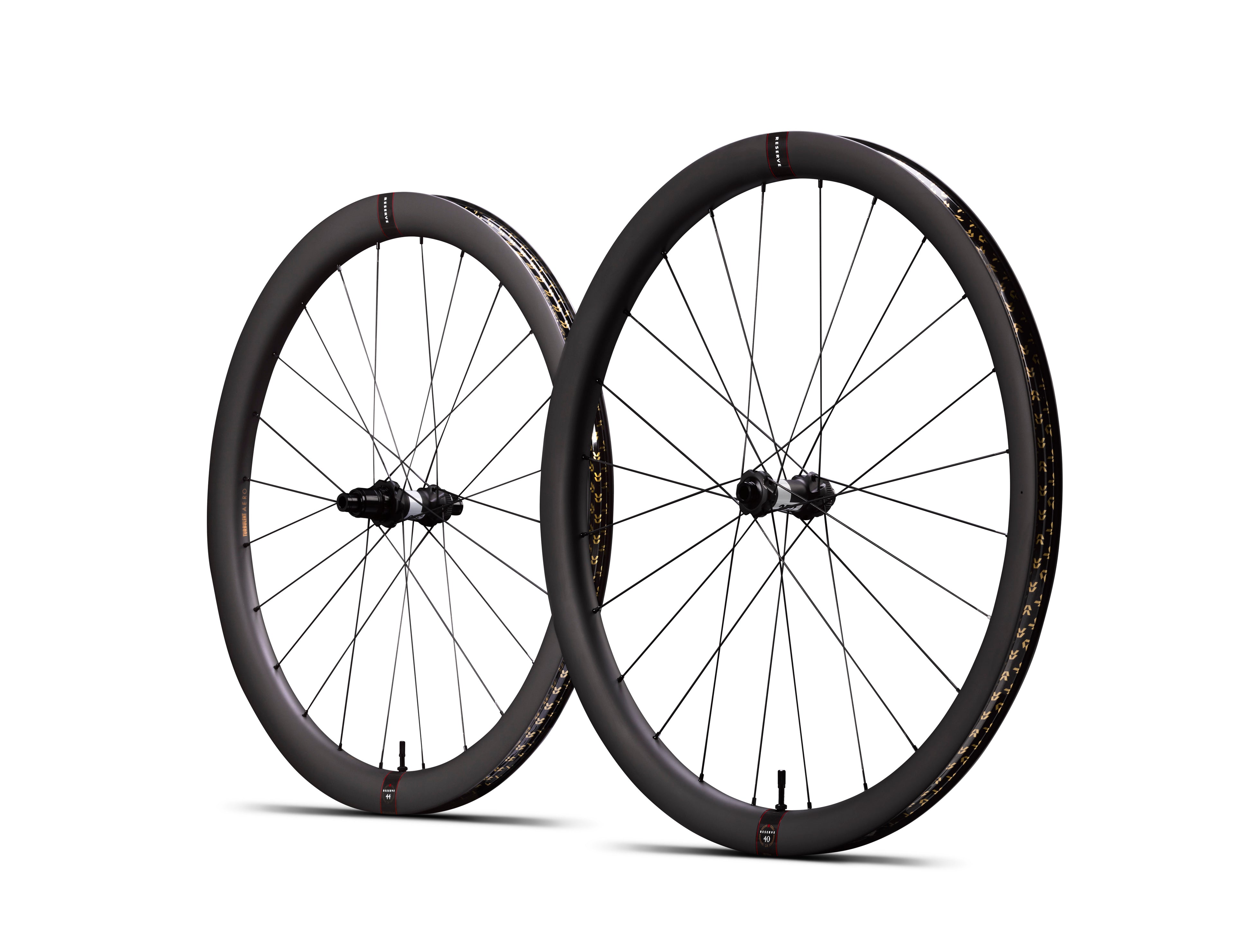

Bringing cutting-edge performance to the diverse needs of off-road drop-bar riders, 40|44 GR gravel wheels are tailored for the demands of gravel riding with an aero focus. Leveraging Turbulent Aero technology, 40|44 GR wheels feature a 40 mm front rim paired with a 44 mm rear rim, making it an obvious choice for anyone looking for more speed on and off the pavement.

Wider than our previous gravel wheels to allow for tires up to 50mm, 40|44 GR play nicely with modern high-volume gravel tires, and a semi-hooked bead makes tire selection and tubeless setup easier than ever. Like all Reserve wheels, the 40|44 GR wheels have a lifetime warranty, supported by a no-fault crash replacement. In keeping with Reserve's sensible ways, you’ll find external nipples, standard spokes and no rider weight limits.

See Full Specs

Lifetime Warranty

All Reserve wheels are built around a simple principle: we have your back. That means no rider weight limits, an industry-leading Lifetime Warranty, safe semi-hooked rim designs and comprehensive customer service.

We are riders like you and we know that breaking a wheel or damaging a Fillmore Valve can be a frustrating experience, especially when it’s keeping you from getting out on your bike. Our promise to you is that we will do our best to get you back riding as quickly as possible. It’s the reason we have made ourselves available through email, chat or by scheduling a video call. We want to be here when you need us most.

Learn more or submit a warranty claim here.

What's in the Box

  • 1x Complete wheelset
  • XDr + HG-EV driver (DT 180 only)
  • 32mm Reserve Rim Tape (installed)
  • 2x 70mm Fillmore Tubeless Valves (un-installed)
  • User Manual

Shipping and Returns

Free shipping on all wheels and orders over $49.99. We aim to ship orders within 24–48 hours on business days. Once shipped, your order should arrive within 3–5 business days. Orders ship with duties paid, so there are no surprise charges at delivery. New, unridden products can be returned within 60 days. Learn more on our Shipping & Returns page.

01 Mixed Profile Front and Rear

02 No Fuss Design

03 Internal Spoke Reinforcements

01Mixed Profile Front and Rear02No Fuss Design03Internal Spoke Reinforcements

Mixed Profile Front and Rear

The mixed profile front and rear setup of the 40|44 GR provides for maximum stability, lowest weight and optimized aerodynamics.

No Fuss Design

The 40|44 GR is designed to be your no fuss aero gravel riding and racing wheelset. There are no weight limits, no tire limitations, and can be set up tubeless or with tubes.

Internal Spoke Reinforcements

Reserve uses internally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.

Details

Designed For Gravel Riding and Racing
Wheelset Weight DT 180 - 1376g , DT 350 - 1454g
Rim Weight 400g - 40 GR, 425g - 44 GR
ERD 560mm, 552mm
Inner Width Front 27.4mm, Rear 27mm
External Width Front 36mm, Rear 34.4mm
Recommended Tire Dimensions 30 to 50mm
Spoke Count 24
Freehub Options XDR, HG-EV
Disc Mounting Option Centerlock
Hub Spacing 12X100mm/12X142mm
Asymmetric Offset Rear 2.7mm
Tire Compatibility Tubeless, Clincher

FAQ

What is the maximum pressure for your rims?

The maximum pressure for our road rims is 100 psi (6.9 bar), or if lower, the maximum pressure as listed by the tire manufacturer on the side of the tire.

The maximum pressure for our gravel rims is 80 psi (5.5 bar), or if lower, the maximum pressure as listed by the tire manufacturer on the side of the tire.

The maximum pressure for our mountain rims is 50 psi (3.4 bar), or if lower, the maximum pressure as listed by the tire manufacturer on the side of the tire.

This applies whether you are running a tubeless or tubed set up.

See more details on your exact rim model in our Tech Docs HERE.

Where can I find more tech spec information?

Click here for all our technical documents.
