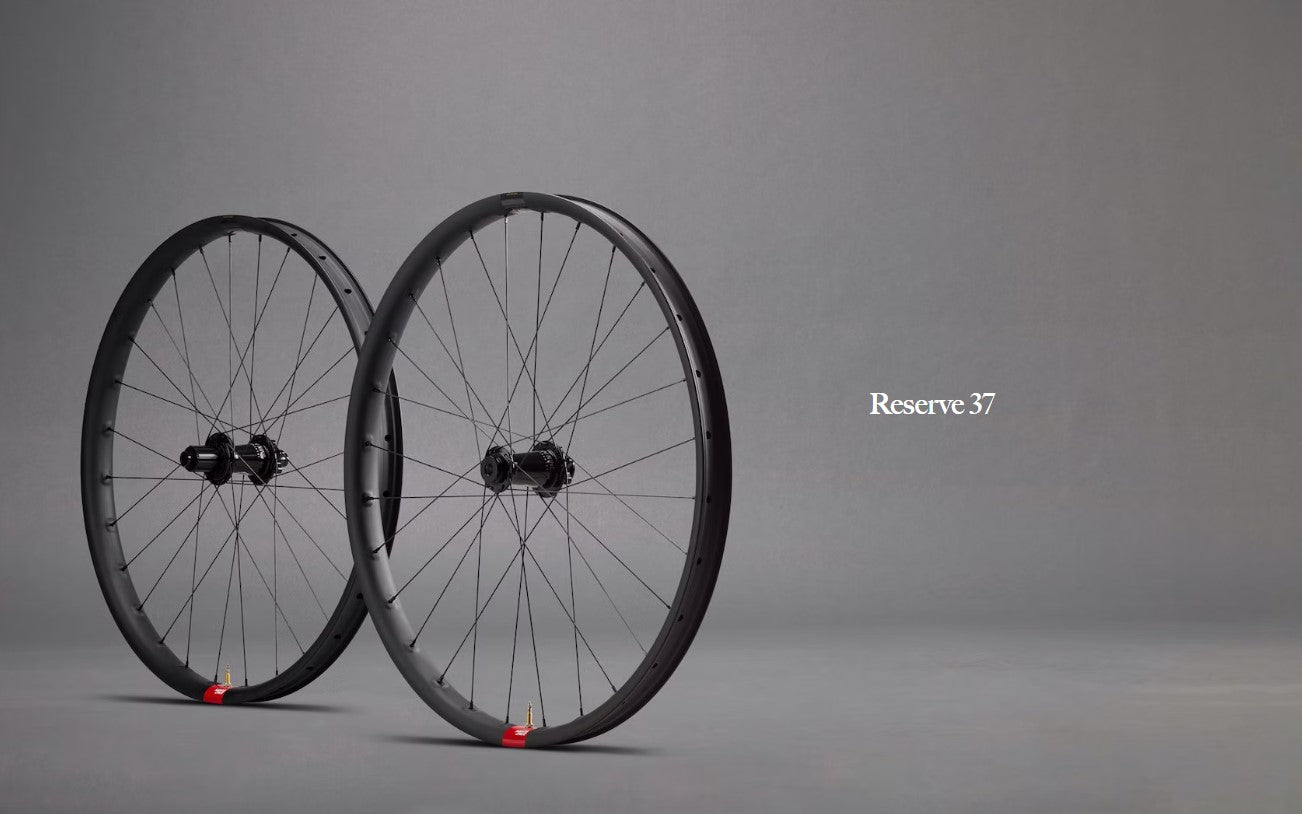

Reserve 37

Description

As the plus-tire fad faded and tires returned to less-balloon-y dimensions, there was a whistle-stop at around a 2.6” tire that turned out to ride really nicely, delivering the traction and confidence that plus-tire advocates had claimed for the real behemoths, but also performed like the aggressive trail tires we love.This wheel is not compatible with Ebikes.

See Full Specs

01 Reinforced Spoke Holes

02 Traction on traction

03 Unlock Width

01Reinforced Spoke Holes02Traction on traction03Unlock Width

Reinforced Spoke Holes

Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.

Traction on traction

Lower tire pressure, higher traction levels. Got it.

Unlock Width

The Reserve 37 is designed specifically for tires between 2.5 and 2.8 inches in diameter, and is 37mm wide internally to support the larger casing these tires have.

Details

Wheel Size

ERD 558
ERD 597
Designed For Trail, all mountain and enduro riding
Inner Width 37mm
Depth 21mm
Recommended Tire Dimensions 2.5 to 3.0
Spoke Count 28
Asymetric Offset 4mm
Rim Weight 490 and 510g
Wheelset Weight 1720g 27.5 with Industry Nine Hydra hubs , 1765g 29" with Industry Nine Hydra Hubs
Hub Options Industry Nine Hydra or DT350
Hub Spacing 110/148
Freehub Microspline or XD

Not Sure Which Wheelset is Right For You? Watch This Short Video:

FAQ

What's with the raised square-shaped area around the spokes?

That's material right where you need it. With information from testing in our carbon lab in hand, we set about determining how to build the strongest rim possible, and part of the result is the square-shaped reinforcements you can see around the spoke holes.

Where can I find more tech spec information?

Click here for all our technical documents.

Didn't see your question?

Click here for a full list of frequently asked questions.
